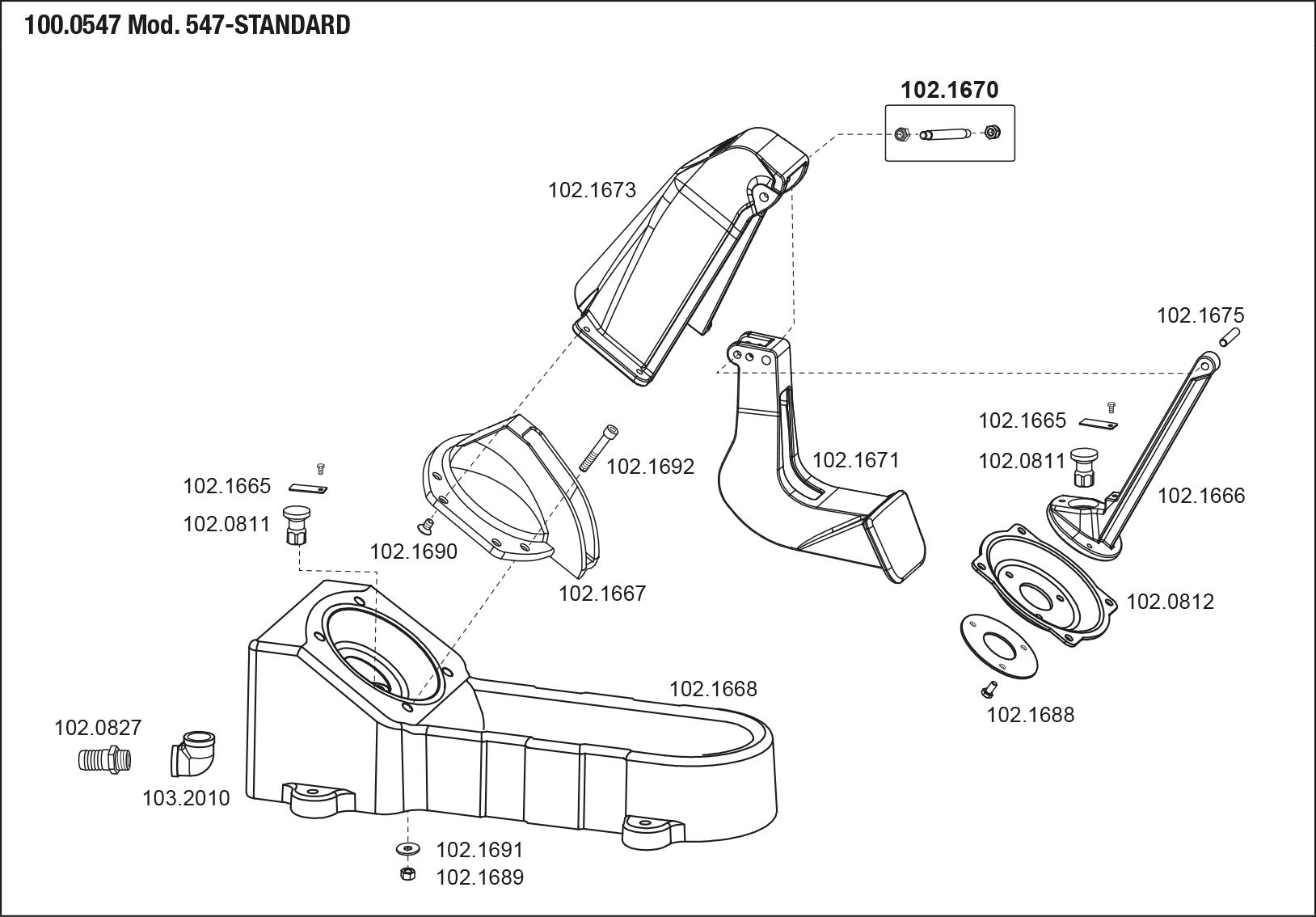

Diaphragm pasture pump Mod. 547 STANDARD
- Smoothly running diaphragm pasture pump, operation can quickly be learned by the animals
- The animals pump their own water from an existing well or surface water and are this way always provided with fresh water
- One pump for all: for sensitive animals e.g. horses or young animals, the pump lever can be changed to another position. Then the force to push will be lower, with a bit less pumping volume.
- Operating lever made of first-class cast iron, plastic-coated
- High-performance diaphragm for suction down to 7 m
- ~0,4 l per movement (in relation to suction depth)
- Sufficient for 15 – 20 animals
- Mod. 547, Mod. 458: bowl made of solid UV-resistant polyethylene
- Mod. 548 JUNIOR: with additional lateral drinking bowl for young stock, which are not able yet to activate the pasture pump. Young animals are provided with fresh water, which runs automatically from the main bowl into the lateral bowl, produced by the pumping action of the mother.
- Mod. 556: bowl made of first-class cast iron, plastic coated. Total weight 32 kg! Very heavy construction.
Recommended for
horses, cattle
Thread size
1"
Bowl material
plastic
Valve type
Pasture pumpe suction valve
Reference
100.0547
GTIN-code
4025338172539
