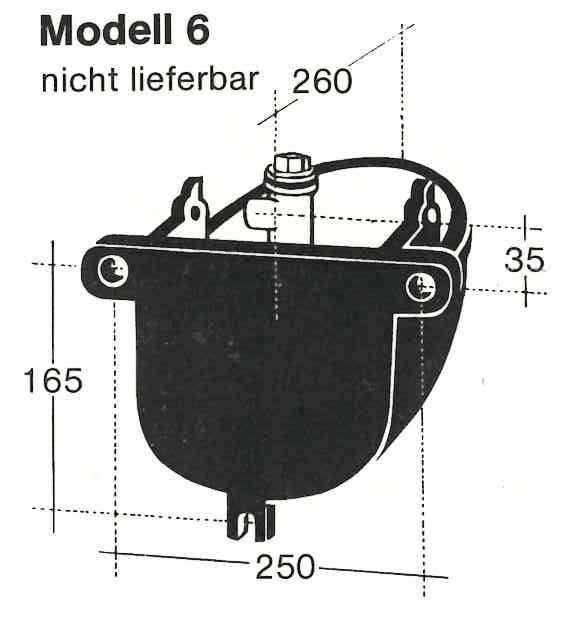

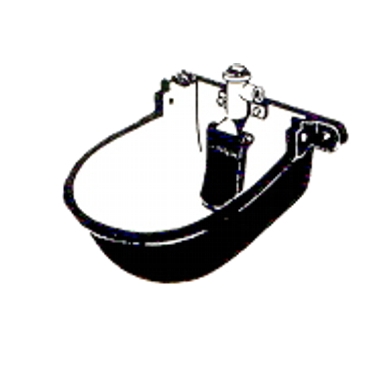

Tränkebecken Mod. 6

Mod. 6 ist wie Mod. 8. Jedoch ohne drehbaren Anschluss.

Pressure

max. 5 bar / 72,5 psi (high pressure)

Recommended for

cattle

Thread size

½"

Bowl material

cast iron enamelled

Valve type

flap

Valve material

brass

Reference

100.0006

GTIN-code

4025338979718

Item no longer available

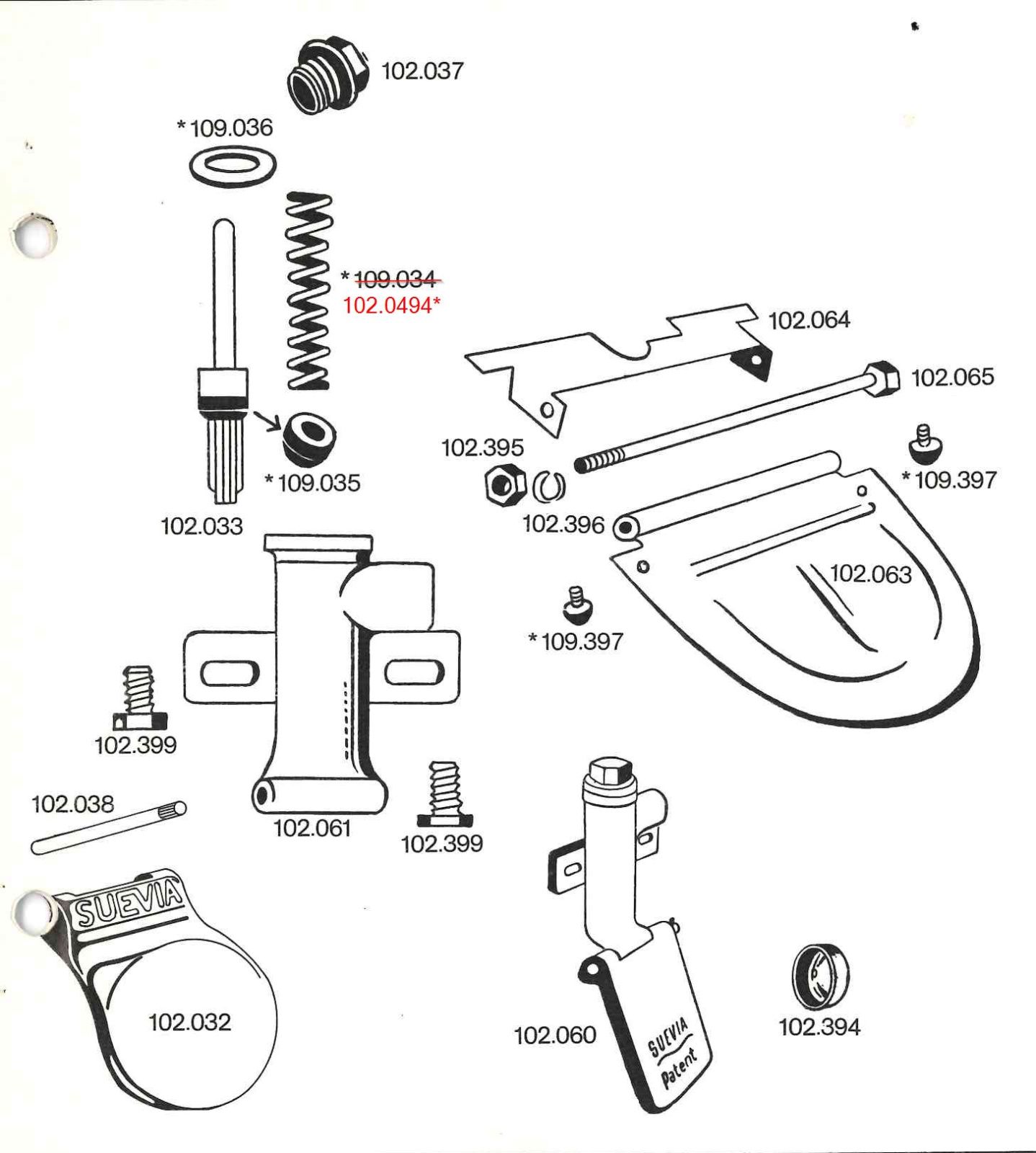

Item number

Description

102.0032

Flap enamelled with blocking device

102.0033

Valve cone with sealing

102.0035-10

Valve sealing (10 pcs/blister) for Mod. 5, 7, 8

102.0038

Spiral pin for flap

102.0399

Hexagon screw M10x20 stainless steel

102.0494-5

Spring (5 pieces/blister) for Mod. 5, 8, 41A, 98, 332
