Durchlauf-Flach-Schwenk-Trog 150 cm Boden mit Water-Boss

Ersatzteile gelten für 130.5722 + 130.5732

Pressure

max. 5 bar / 72,5 psi (high pressure)

Recommended for

milk cows

Thread size

¾"

Heated

Yes (electric)

Suitable for circuit

yes

Bowl material

stainless steel

Valve type

float valve

Valve material

brass

Reference

130.5732

GTIN-code

4025338089424

Item no longer available

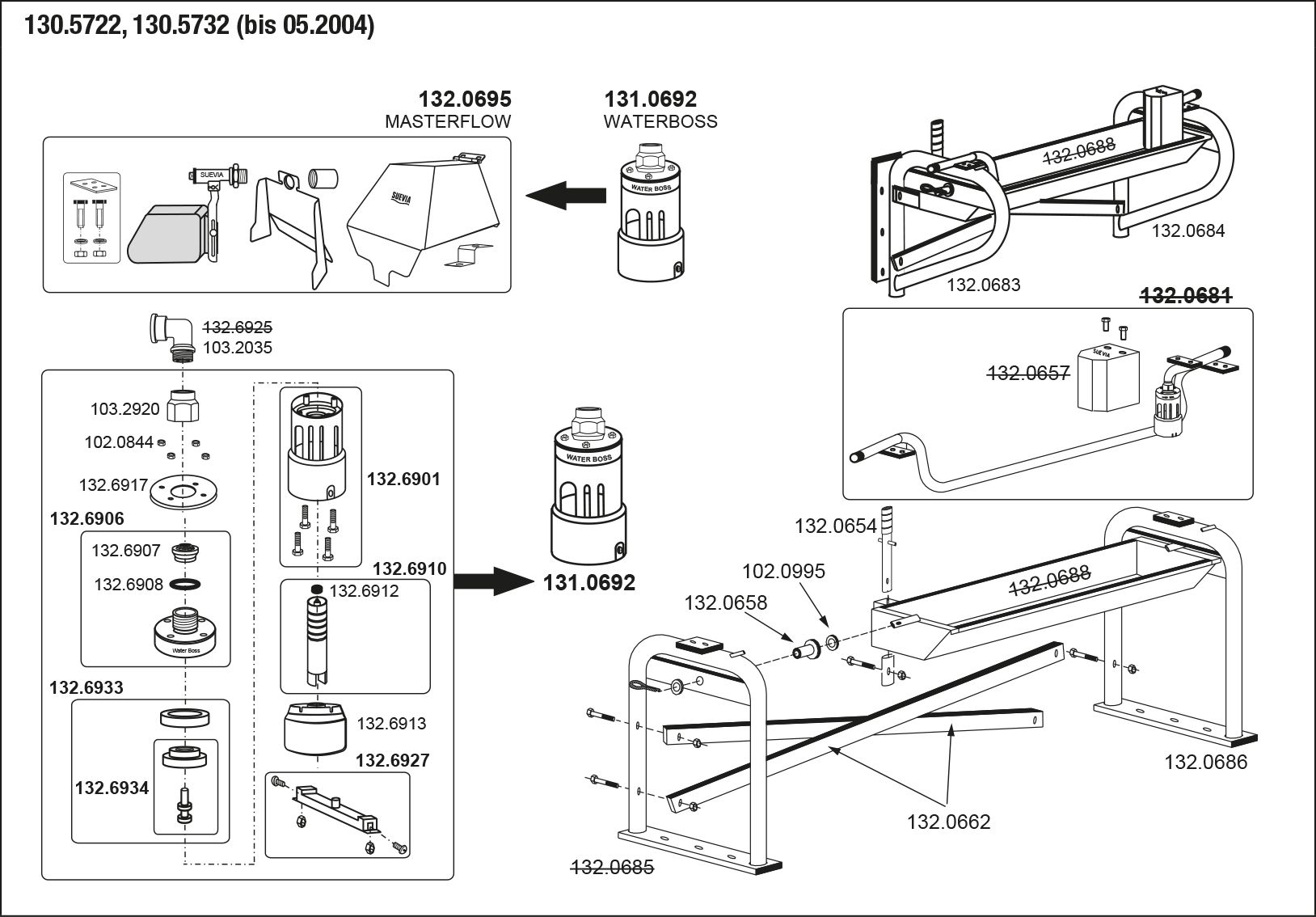

Spare Parts

Item number

Description

102.0844

Hexagon nut self lock. M6 A2

102.0995

Washer A21 (M20) A2

103.2035

Inox-Reducer, ¾"male, ¾"female

103.2920

Reducer, Inox 1" female, ¾" female

131.0692

WATER BOSS float valve for flat tip-over trough

132.0654

Tip-over lever cpl. with screw,nut,roll pin

132.0658

Bearing bush

132.0662

Pair of cross struts 1,5 m

132.0683

Left side frame wall fixation for flat tip-over trough

Item no longer available

132.0684

Right side frame wall fixation for flat tip-over trough

Item no longer available

132.0688

Trough for flat tip-over 1,5 m

Item no longer available

132.6901

Valve lower part assembled with 4 bolts

132.6906

ValveUpper part assembled with O-ring and pre-filter

132.6907

Pre-filter cpl. grid width 0,3 -0,4 mm

132.6908

Sealing

132.6910

Piston with sealing for WATER BOSS

132.6912

Sealing

132.6913

Floater for WATER BOSS

132.6917

Washer for WATER BOSS tip-over trough

132.6927

Bridge w. bolts and nuts for WATER BOSS

132.6933

Silicone membrane set for WATER BOSS

132.6934

Silicone membrane with membrane support
