Drinking bowl Mod. 12P-VA¾" black edition

  • Bowl made of top quality AQUATHAN plastic
  • Extremely flexible, flexes on impacts, shock-resistant
  • No sharp edges, no risk of injury
  • Smoothly running tube valve
  • Water flow continuously adjustable from outside by means of a regulation screw
  • Female ¾" connection from top and bottom
  • 100.0122, 100.0123: brass valve
  • 100.0128, 100.0129: stainless steel valve
Pressure
max. 5 bar / 72,5 psi (high pressure)
Recommended for
calves, horses
Thread size
¾"
Bowl material
plastic
Valve type
tube valve
Valve material
stainless steel
Reference
100.0128
GTIN-code
4025338109955

101.0167_befestigungsbuegel
101.0167
Fixing bracket 1½" – 2" with plate
101.1486_traenkenhalter_fuer_rohre_76_mm
3 Variants
Mounting Bracket posts Ø 76 mm (2½") flat, without screws
NEW
131.6094_Adapterplatte_Traenkebecken
131.6094
Adapter plate for fence gates
101.0469_schutzbuegel
101.0469
Protection bracket Mod. 469
101.1490_eckhalter
101.1490
Corner plate
101.0472_Schutzbuegel_fuer_Mod._12P_25R
101.0472
Protection for Mod. 12P, 25R for 2"-3½"-pipes
102.1127_va-rohr_¾_19_cm
102.1127
Connection pipe inox ¾",19 cm straight m/m
101.1240_adapterplatte_verzinkt_25-35_zoll
101.1240
Adapter plate for 1½"–3½" (48-102 mm) pipes
103.1983_Ringleitungs-Anschlussset_¾_Zoll
103.1983
Connection set for ¾" water circuits
horses
cattle
100.0259_mod._25r-va¾
100.0259
Drinking bowl Mod. 25R-VA¾"

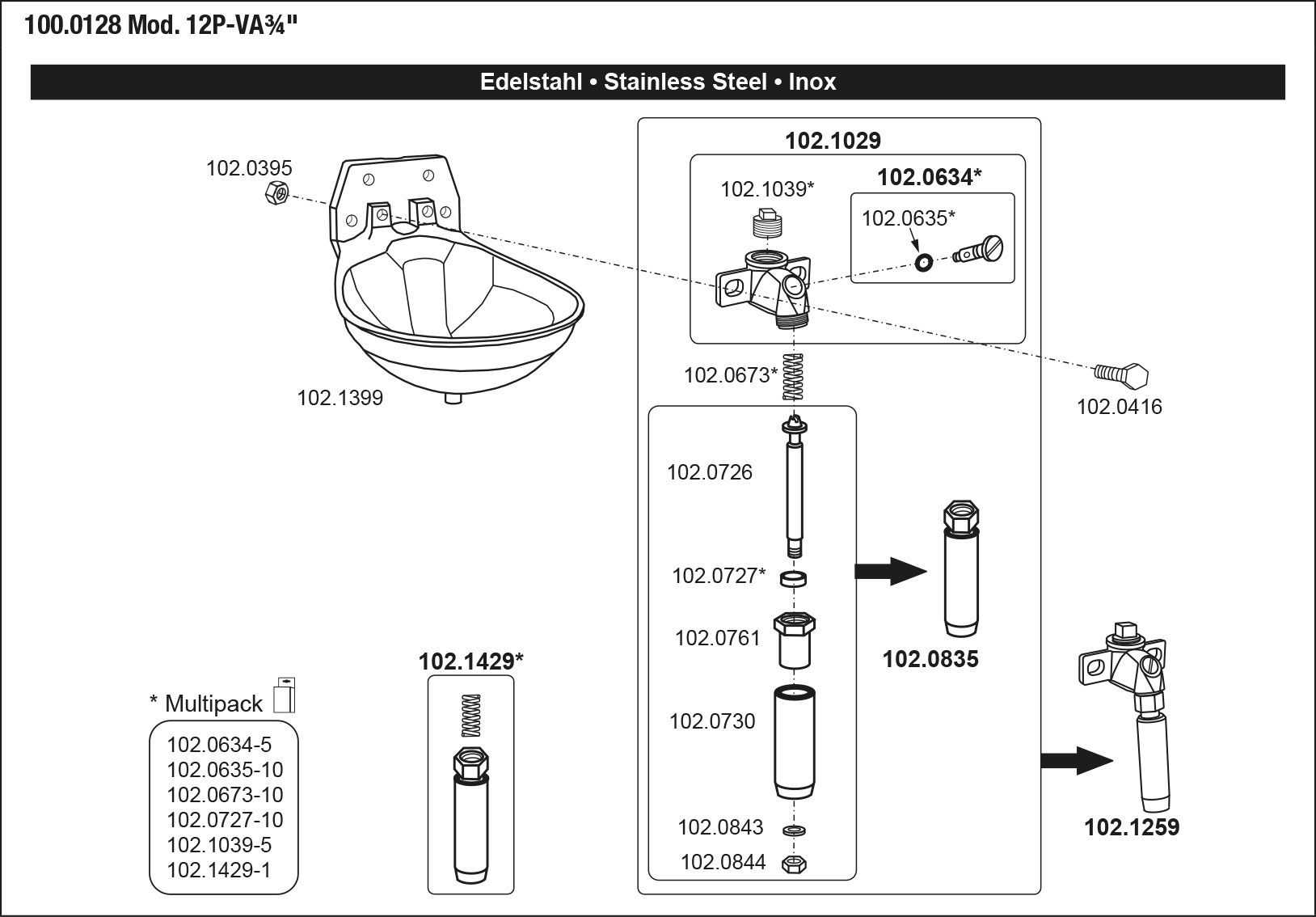

Item number
Description
102.0395
Hexagon nut M10 galvanized
102.0416
Hexagon screw M10x35 stainless steel
102.0634
Regulation screw with O-ring
102.0634-5
Regulation screw with O-ring (5 pieces/blister)
102.0635-10
Sealing (10 pieces/blister)
102.0673-10
Valve spring (10 pcs./blister) for all tube valves
102.0726
Valve bolt
102.0727-10
Valve sealing (10 pcs/blister) for all tube valves
102.0730
Tube
102.0761
Seal housing in stainless steel
102.0835
Valve lower part Inox
102.0843
Washer A6,4 (M6) A2
102.0844
Hexagon nut self lock. M6 A2
102.1029
Conn union ¾" stainl.steel" with regulation and plug
102.1039
Connection stopper ¾"
102.1039-5
Connection stopper ¾" (5 pieces/blister)
102.1259
Valve¾", Inox, complete with regulation, with plug
102.1399
Bowl, for Mod. 12P, plastic (black)
102.1429-1
Valve lower part with spring Stainless steel (1 pc/blister)
